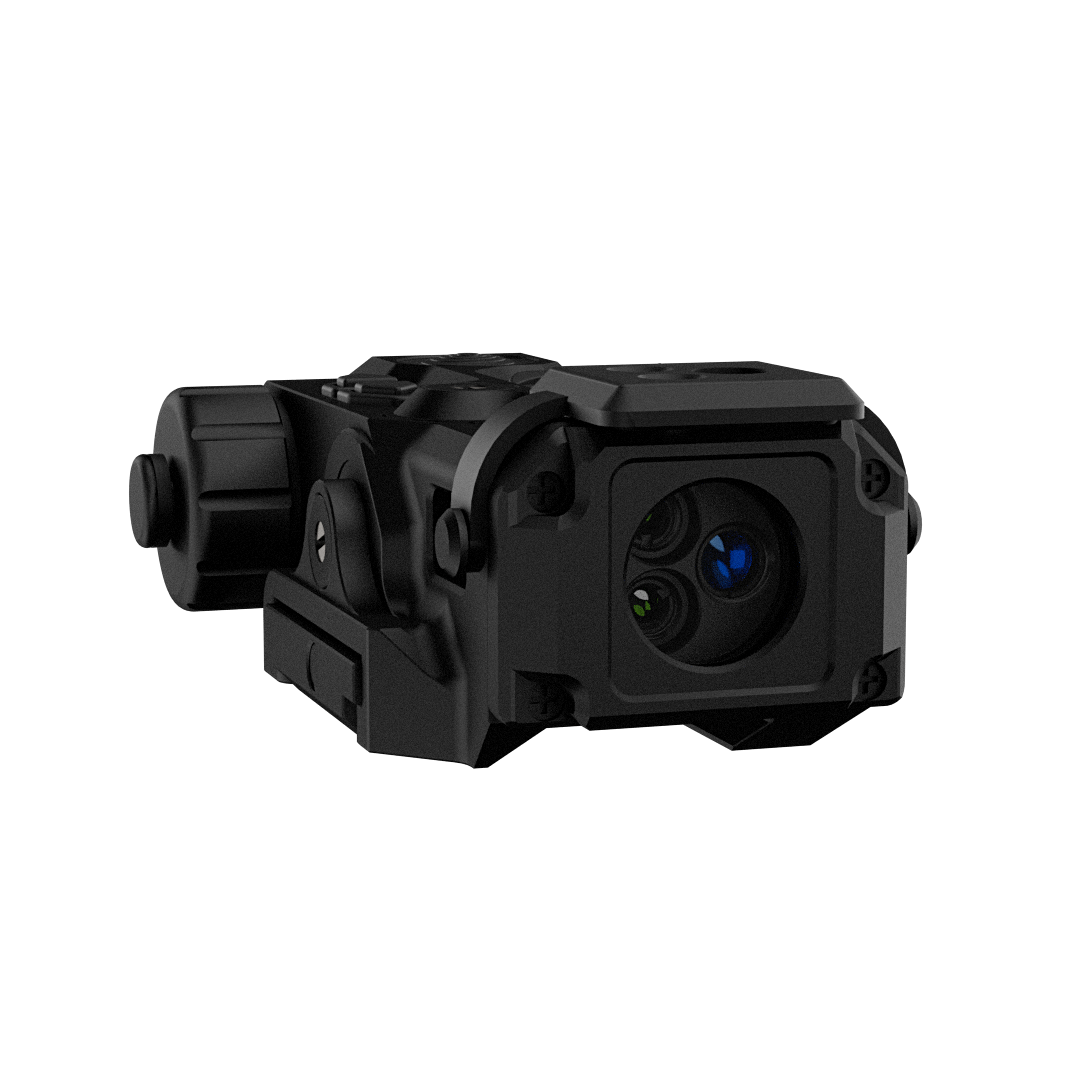

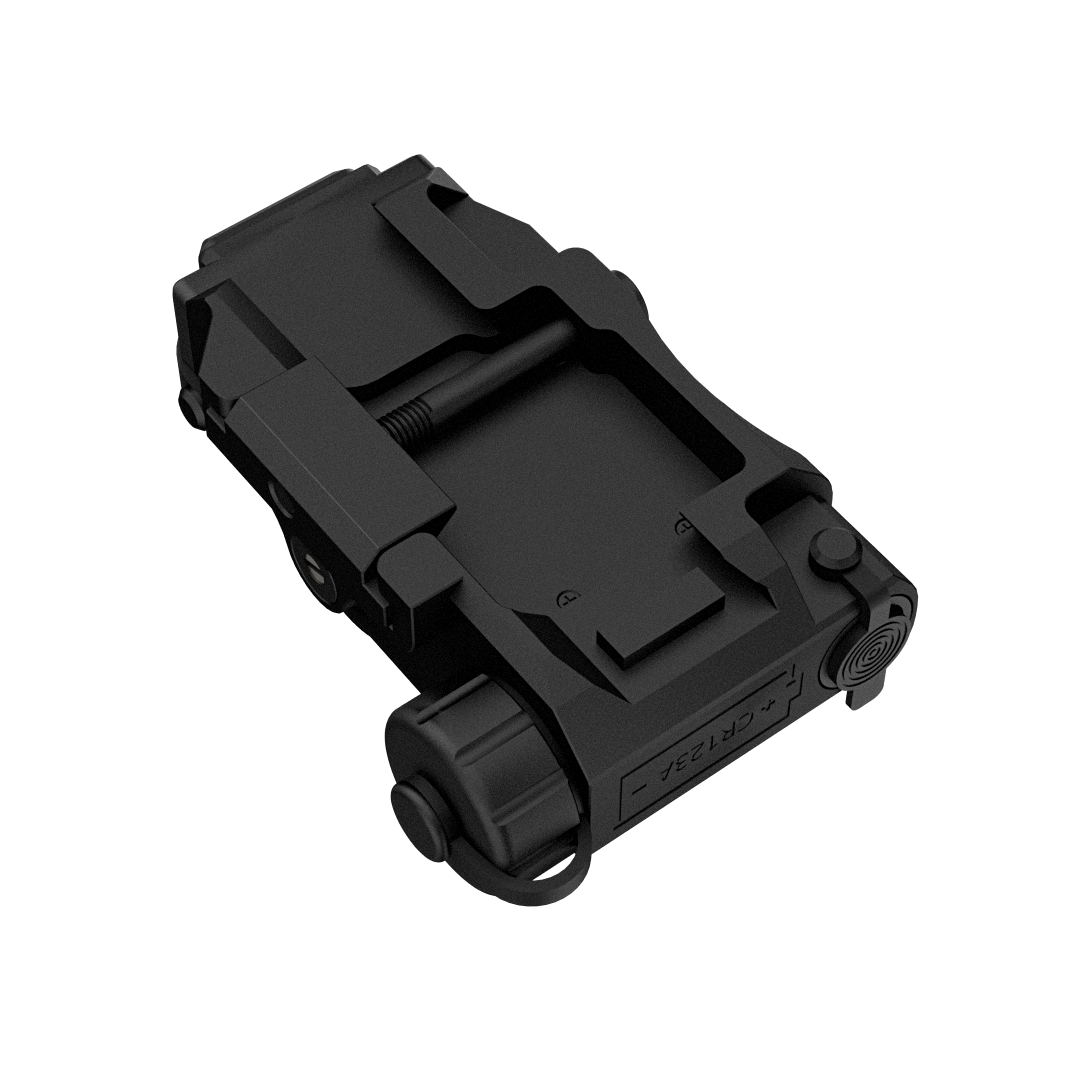

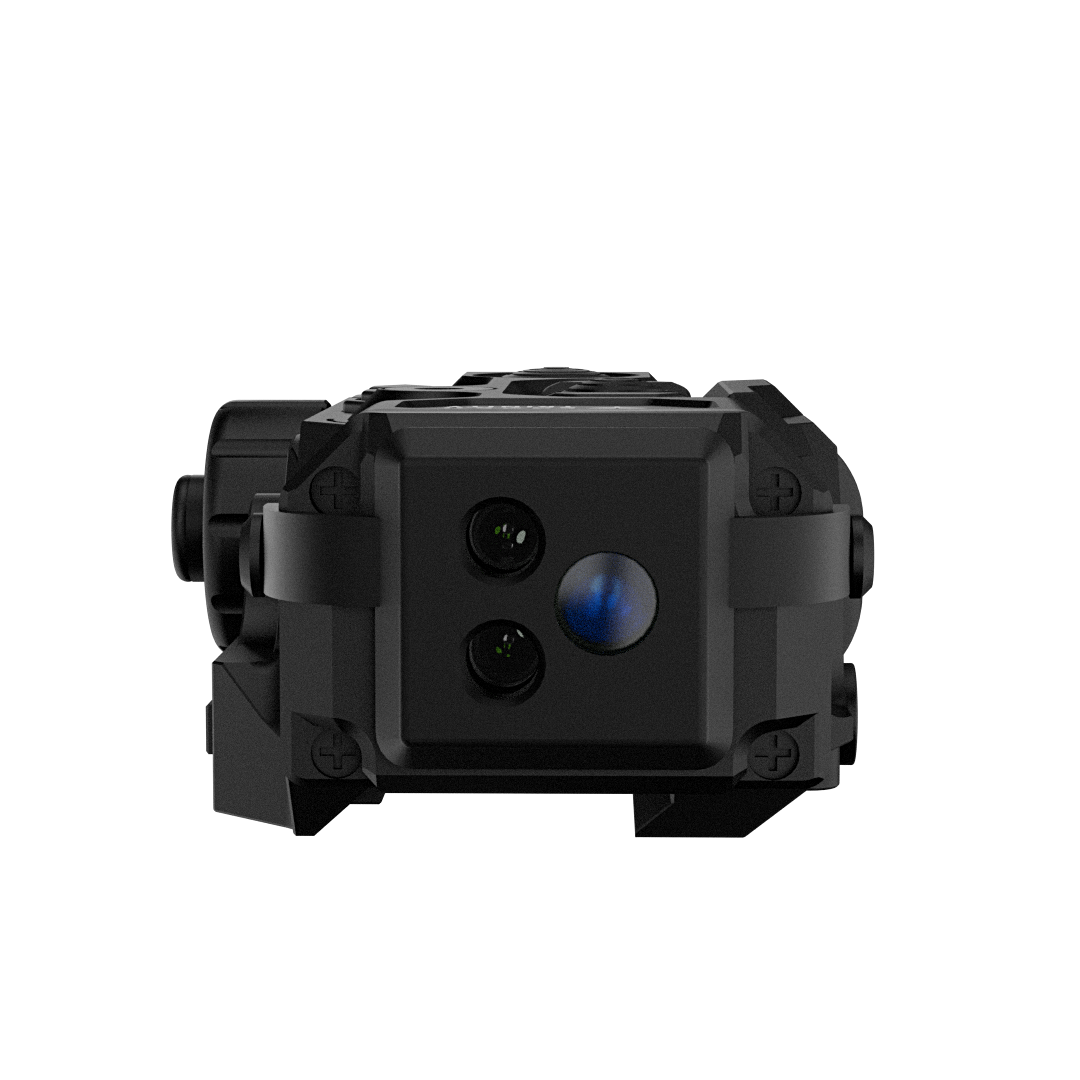

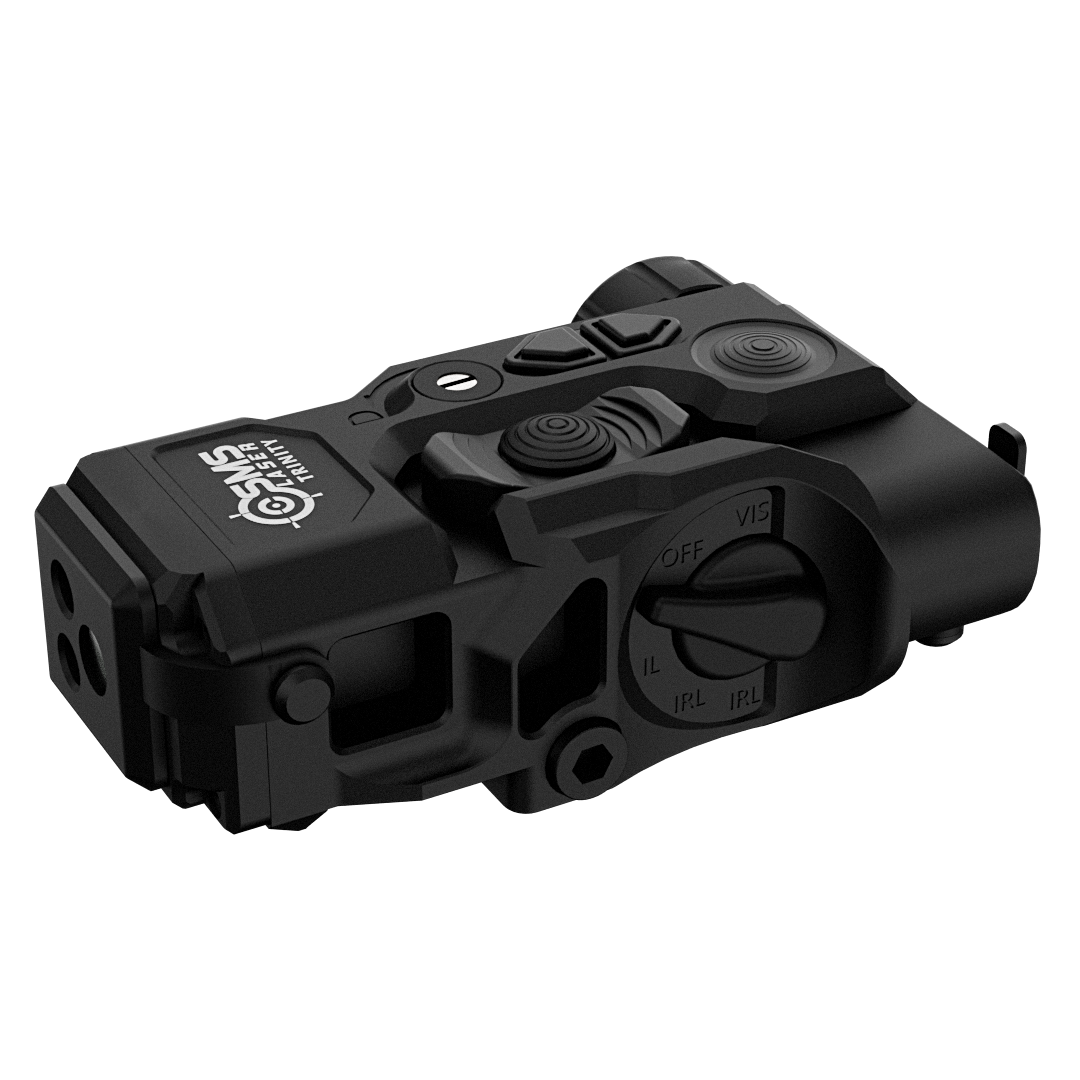

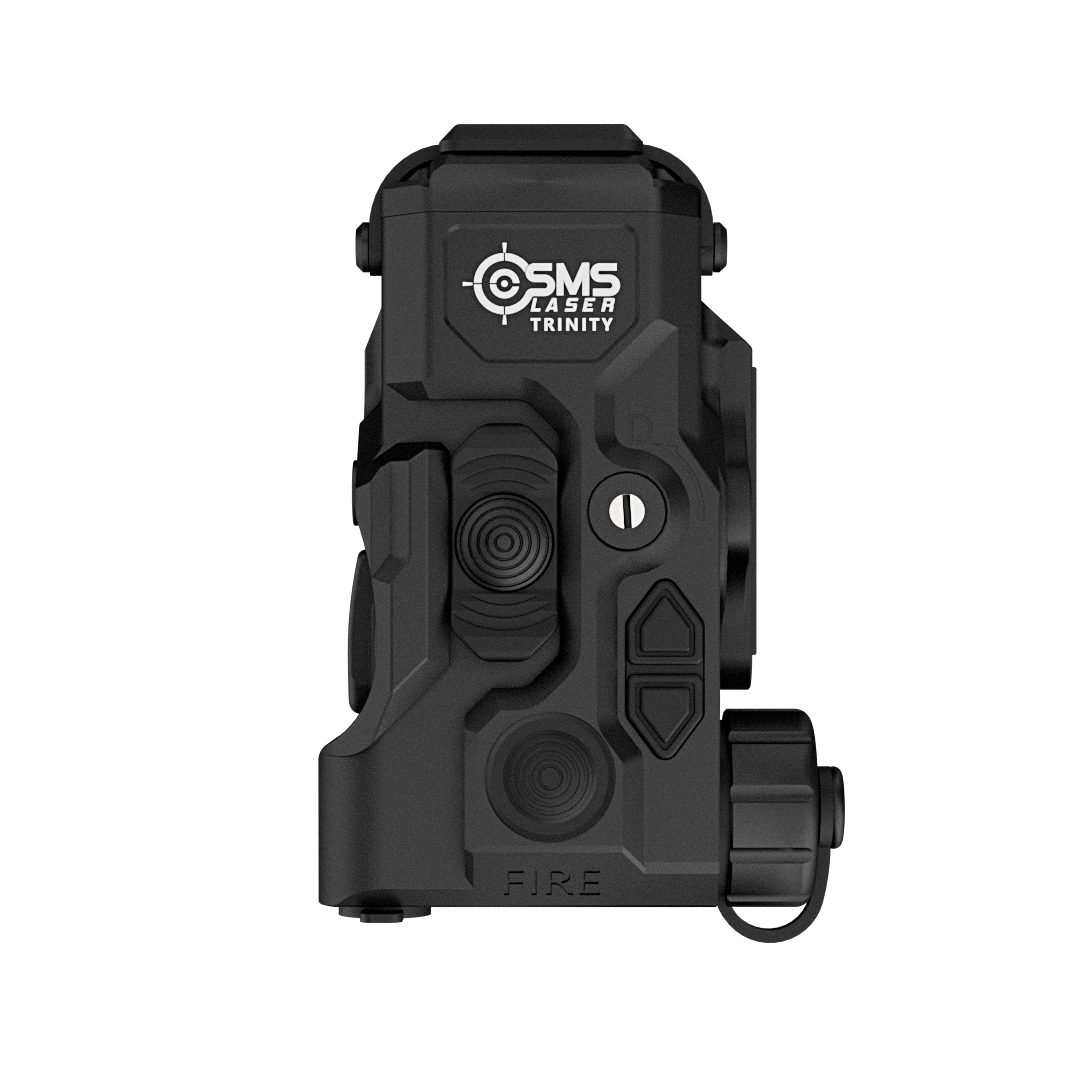

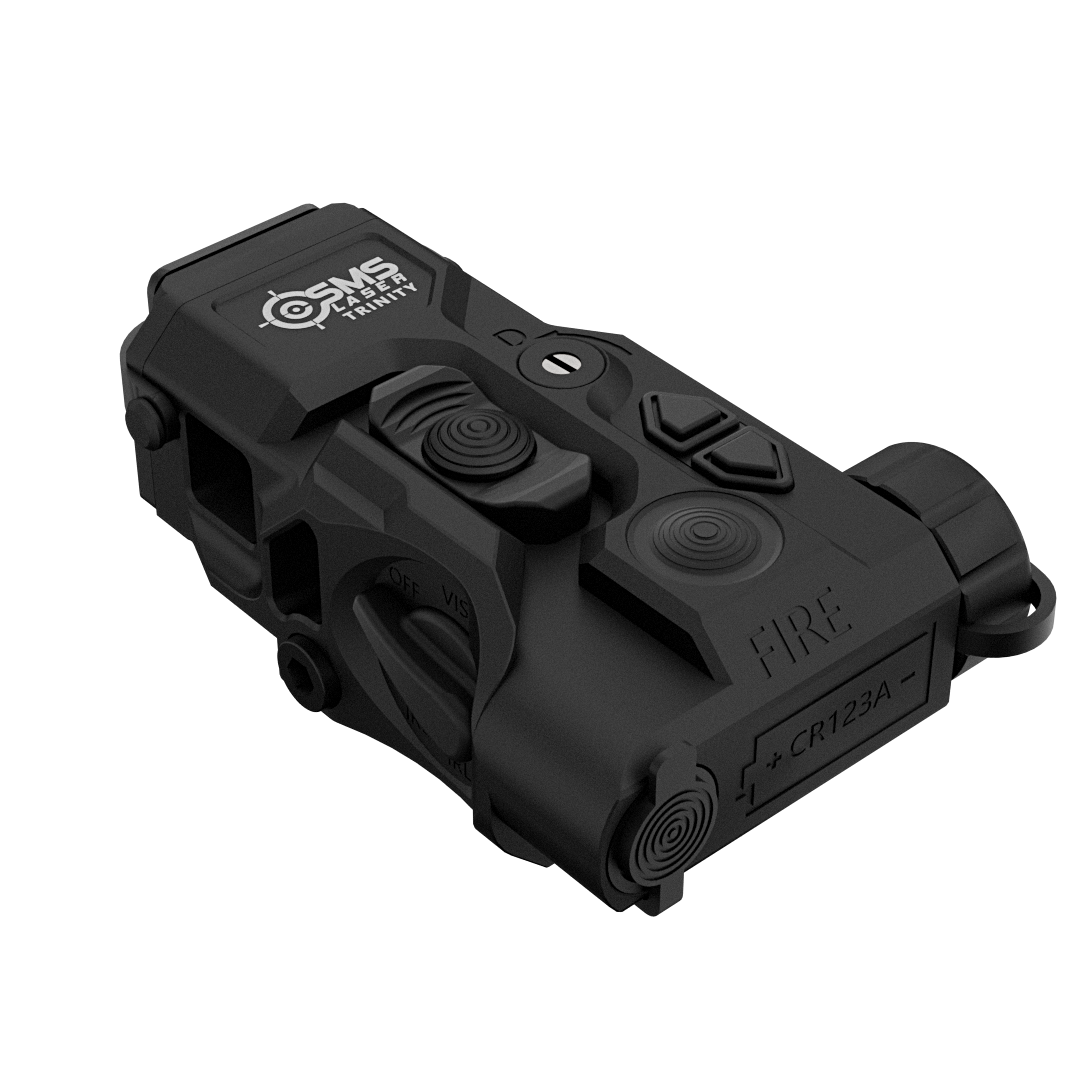

SMSLaser Trinity(Ship within 35 days after pre-order)

Regular price $320.00
Sale price $320.00 Regular price $350.00
Unit price
Specification
Reviews

Key Features

  • The IR illuminator utilizes VCSEL technology, delivering a cleaner illumination effect than traditional EEL illuminators!
  • IR lasers, VIS lasers, and IR illuminators are coaxial and do not require separate calibration.
  • IR Illuminator variable beam divergence: ~45 MRAD to ~180 MRAD
  • Adjustable power (low power IR laser high power IR illuminator, reduces halo from IR laser)
  • A flood lens has been configured to illuminate a wider area.

Optical Specifications

  • Visible laser power: <5mW
  • Visible laser wavelength: 520nm
  • IR laser power: 0.7mW
  • IR laser wavelength: 850nm
  • IR Illuminator Power: 100mW(Vcsel)
  • IR Illuminator wavelength: 850nm

Physical Specifications

  • Dimension (in):3.54(L)*2.36(W)*1.18(H)
  • Weight (oz):6.7

Mechanical Specifications

  • Housing Material:Aluminum
  • Surface Finish: hard oxidation
  • Adjustment per Click: 1MOA

Environmental Specifications

  • Submersion: IPX7
  • Vibration: 1200G
